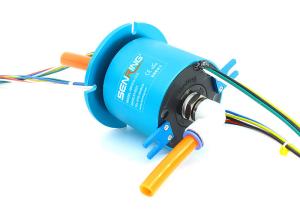

Pneumatic Rotary Union With 1 Passage+12 Circuits 2A Slip Ring
Description of 3001012 Pneumatic Rotary Union
The Senring 3001 pneumatic rotary joint is a single passage electrical integrated slip ring that can rotate 360 degrees to transmit various gas media such as compressed air, steam, and vacuum. It supports multiple gas pipes of 4mm, 6mm, 8mm, 10mm, and 12mm. The 3001 series single passage 360-degree rotary air joint can not only transmit gas, but also mix and transmit various currents ranging from 2A to 800A. It has the advantages of small size, light weight, and low torque.
Features of 3001012 Pneumatic Rotary Union
1. Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings,etc.;
2. 360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc.
3. Max. Pressure(s):10Mpa (vacuum: -1.5kPa, higher Pressure can be customized)；
4. Standard version with flange mounting,can be customized with hollow shaft mounting;
5. Support 1 G3/8" port for 10~12mm pipes;
Technical Specification of 3001012 Pneumatic Rotary Union
| Passages(Gas) | 1 passage |
| Pipe Size | 12mm pipe, G3/8" Port |
| Mechanical Data |
| spec. | data |
| Working life | 20millions for ref(depends on working conditions) |
| Max. Operating Speed | 250RPM continously, 1000RPM intermittently |
| Working temp. | -30°C~80°C |
| Work humidity | 0~85% RH |
| Contact Materia | Precious Metal |
| Housing Material | aluminum alloy |
| IP Grade | IP51 |
Max. Operating
Pressure | Positive Pressure 10Mpa, Vacuum -90kPa |
| torque | 0.2N.m |
| Electrical Data |
| spec. | data |
| Power | Signal |
| Voltage range | 0~440VAC/VDC | 0~440VAC/VDC |
| Insolution resistance | <500MΩ/300VDC | <500MΩ/300VDC |
| Lead wire spec. | AWG17# Silver-plated teflon wire | AWG22# Silver-plated teflon wire |
| Lead wire length | standard 250mm(can be customized) |
| Insolution resistance | 500VAC@50Hz,6s |
| Electrical noise | <0.01Ω |
Part no. description
Drawing
Standard model list
| 3001012-02S | 1 passage | 0 | 2 | 32 |
| 3001012-0210 | 1 passage | 2 | 0 | 32 |
| 3001012-03S | 1 passage | 0 | 3 | 36 |
| 3001012-0310 | 1 passage | 3 | 0 | 36 |
| 3001012-06S | 1 passage | 0 | 6 | 46 |
| 3001012-0210-04S | 1 passage | 2 | 4 | 46 |
| 3001012-0410-02S | 1 passage | 4 | 2 | 46 |
| 3001012-0610 | 1 passage | 6 | 0 | 46 |
| 3001012-12S | 1 passage | 0 | 12 | 68 |
| 3001012-0210-10S | 1 passage | 2 | 10 | 68 |
| 3001012-0310-09S | 1 passage | 3 | 9 | 68 |
| 3001012-0610-06S | 1 passage | 6 | 6 | 68 |
| 3001012-0810-04S | 1 passage | 8 | 4 | 68 |
| 3001012-1010-02S | 1 passage | 10 | 2 | 72 |
| 3001012-1210 | 1 passage | 12 | 0 | 72 |
| 3001012-18S | 1 passage | 0 | 18 | 96 |
| 3001012-0210-16S | 1 passage | 2 | 16 | 96 |
| 3001012-0410-14S | 1 passage | 4 | 14 | 96 |
| 3001012-0610-12S | 1 passage | 6 | 12 | 96 |
| 3001012-0810-10S | 1 passage | 8 | 10 | 96 |
| 3001012-1010-08S | 1 passage | 10 | 8 | 96 |
| 3001012-1210-06S | 1 passage | 12 | 6 | 96 |
| 3001012-1410-04S | 1 passage | 14 | 4 | 96 |
| 3001012-1610-02S | 1 passage | 16 | 2 | 96 |
| 3001012-24S | 1 passage | 0 | 24 | 120 |
| 3001012-0410-20S | 1 passage | 4 | 20 | 120 |
| 3001012-0610-18S | 1 passage | 6 | 18 | 120 |
| 3001012-1210-12S | 1 passage | 12 | 12 | 120 |
| 3001012-1810-06S | 1 passage | 18 | 6 | 120 |
| 3001012-2410 | 1 passage | 24 | 0 | 120 |
| 3001012-30S | 1 passage | 0 | 30 | 144 |
| 3001012-0610-24S | 1 passage | 6 | 24 | 144 |
| 3001012-1210-18S | 1 passage | 12 | 18 | 144 |
| 3001012-1810-12S | 1 passage | 18 | 12 | 144 |
| 3001012-2410-06S | 1 passage | 24 | 6 | 144 |
| 3001012-3010 | 1 passage | 30 | 0 | 144 |
| 3001012-36S | 1 passage | 0 | 36 | 168 |
| 3001012-0610-30S | 1 passage | 6 | 30 | 168 |
| 3001012-1210-24S | 1 passage | 12 | 24 | 168 |
| 3001012-3610 | 1 passage | 36 | 0 | 168 |
| 3001012-42S | 1 passage | 0 | 42 | 192 |
| 3001012-0610-36S | 1 passage | 6 | 36 | 192 |
| 3001012-1210-30S | 1 passage | 12 | 30 | 192 |
| 3001012-48S | 1 passage | 0 | 48 | 216 |
| 3001012-0610-42S | 1 passage | 6 | 42 | 216 |
| 3001012-1010-38S | 1 passage | 10 | 38 | 216 |
| 3001012-1210-36S | 1 passage | 12 | 36 | 216 |
| 3001012-1810-30S | 1 passage | 18 | 30 | 216 |
| 3001012-2410-24S | 1 passage | 24 | 24 | 216 |
| 3001012-60S | 1 passage | 0 | 60 | 264 |
| 3001012-0610-54S | 1 passage | 6 | 54 | 264 |
| 3001012-1010-50S | 1 passage | 10 | 50 | 264 |
| 3001012-72S | 1 passage | 0 | 72 | 312 |
| 3001012-96S | 1 passage | 0 | 96 | 408 |
SenRing general slip ring models are applied in many applications and equipments,providing system solutions for worldwide.
It involves wind power,controller and industrial turntable,robot,engineering machinery,CCTV video mornitoring,medical equipment,military radar and so on...
